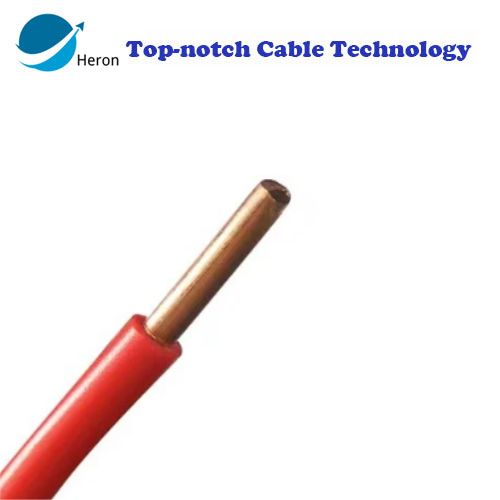

Heron H07Z-U/Fire-Resistant LSZH Wires
Applications
Residential & Commercial Buildings: Main power distribution and lighting circuits.
Fixed Electrical Infrastructure: Wiring within wall-embedded conduits, cable trays, and trunking systems.
Public Facilities: Schools, hospitals, and office complexes where LSZH fire-safety standards are non-negotiable.
Stable Environments: Ideal for non-vibrating areas where long-distance, high-stability electrical supply is needed.
Technical Specifications
Feature | Specification |
Model | H07Z-U (450 / 750V) |
Conductor | Class 1 Solid Annealed Copper |
Insulation | Special LSZH Compound |
Fire Performance | IEC 60332-1-2 (Flame Retardant) |
Halogen-Free | IEC 60754-1/2 |
Smoke Density | IEC 61034-2 |
Max. Operating Temp. | +90°C |
Installation | Fixed in conduits, ducts, or trunking |
Key Advantages
Maximum Economic Efficiency: Utilizing a single solid conductor, the H07Z-U offers the most competitive cost structure among the H07Z series, ideal for large-scale, budget-sensitive infrastructure projects.
Structural Stability: The solid (Class 1) conductor provides superior rigidity, making it the perfect choice for permanent installations where cables are laid once and remain undisturbed.
Superior Fire Safety: Built with advanced halogen-free insulation to minimize toxic smoke emission, meeting the rigorous safety mandates required for modern public and commercial building codes.
Factory-Direct Reliability: As a professional manufacturer, Heron Cable ensures consistent conductor purity and insulation uniformity, providing peace of mind for long-term electrical network operations.
