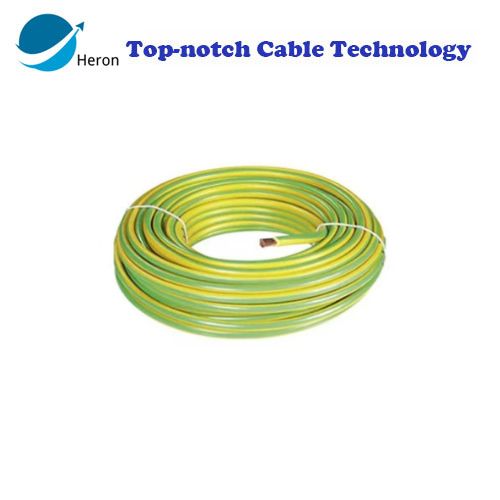

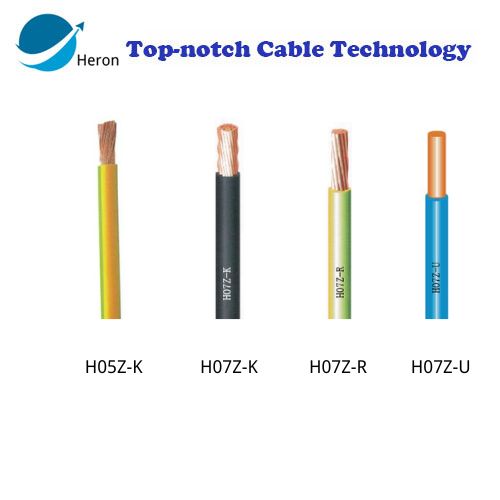

Heron H05Z-K & H07Z-K/Fire-Resistant LSZH Wires
Applications:
H05Z-K and H07Z-K LSZH wires for industrial control panels, PLC systems, secondary power circuits, and critical wiring in public buildings and data centers.
See the technical specifications for conductor, fire-performance, and operating-temperature details.
Structure
Feature | Specification |
|---|---|
Model | H05Z-K (300/500 V) / H07Z-K (450/750 V) |
Conductor | Class 5 flexible annealed copper |
Insulation | Special LSZH compound |
Fire Performance | IEC 60332-3 flame retardant |
Halogen-Free | IEC 60754-1/2 |
Smoke Density | IEC 61034-2 |
Operating Temperature | -15°C to +90°C |
Key Advantages
Flexible Class 5 construction supports routing in control cabinets and narrow conduits.
LSZH materials are selected to limit flame propagation and smoke in fire-safety projects.

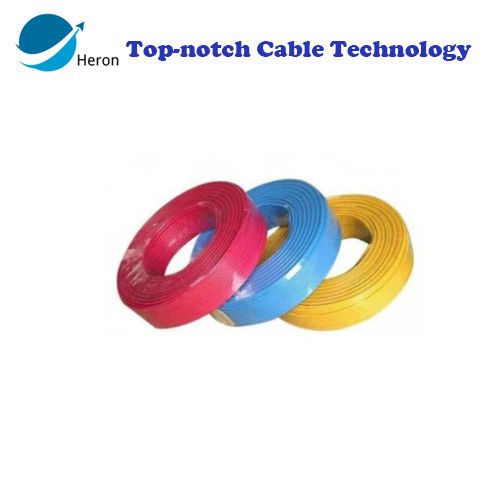

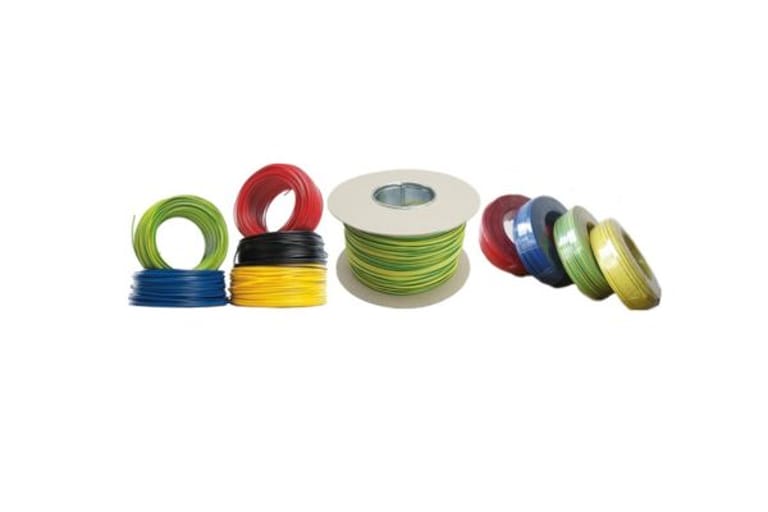

Color coding and bulk spooling options are available for project requirements.
