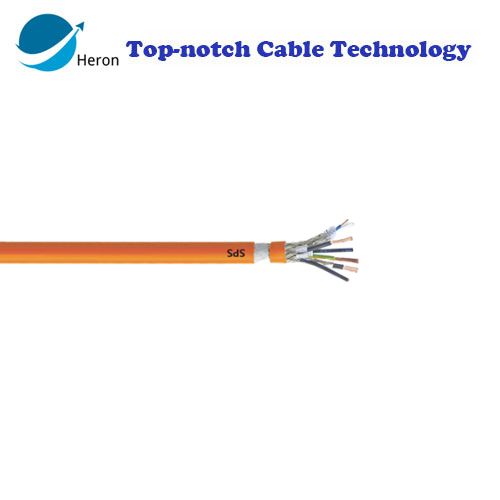

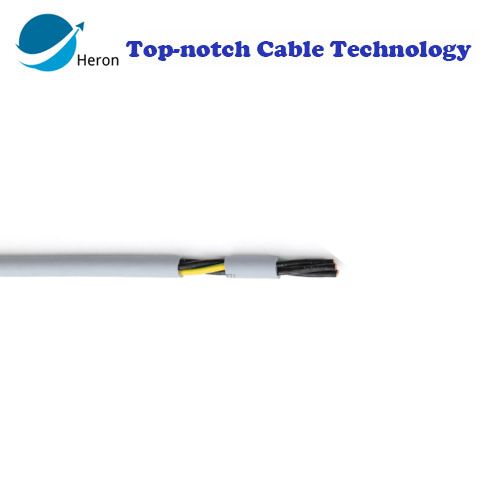

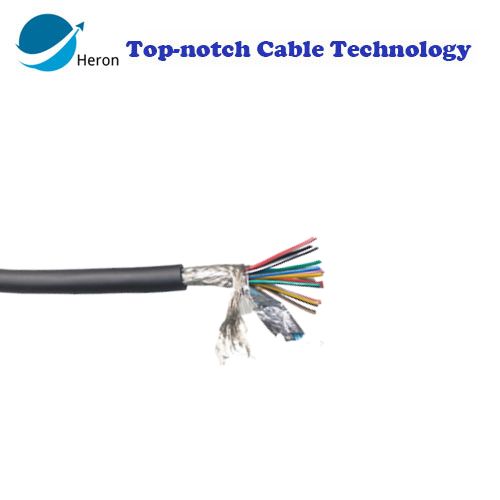

Heron Flexible Drag Chain Control Cable | High-Flex & Bend-Resistant Cable Factory | Full Specifications

Applications：

Our flexible drag chain control cables are engineered for high-frequency reciprocating motion environments. Featuring a specially modified PVC or PUR outer jacket, these cables offer exceptional resistance to wear, oil, radiation, and torsion. Whether in CNC machines or automated production lines, they provide stable, long-lasting power and signal transmission.

Construction:

Conductor: multiple strands of ultra-fine stranded oxygen-free copper wire, in accordance with VDE0295CLASS 6 standard.

Insulation: Special mixed PVC insulation.

Color: ≤0.5mm color indication, brown, black, blue, purple, pink, orange.

           ≥0.5mm black digital white number numbering, 3 cores or more with yellow and green ground wire.

           (yellow and green optional)

Out jacket: Special modified PVC or PUR.-Orange (RAL2003) black (RAL9005) or gray (RAL7001)

Technical data:

Rated voltage: ≥0.5mm:300/500V ＜0.5mm:300/300V

Test voltage:2500V

Operating temperature range: Fixed installation: -30℃ to +70℃

                                                 Mobile Installation: -5℃ to +70

Minimum bending radius: fixed installation: 4 × cable outer diameter

Mobile installation: 15 x cable O.D.

Application Fields

• Automated Production Lines

• CNC Machinery & Engraving Equipment

• Industrial Robotic Arms

• Material Handling Systems / Stackers)

Key Features

1. Outstanding Flexibility:

   • Engineered with high-flex materials and advanced conductor layouts to accommodate constant bending and flexing within drag chains.

   • Reduces stress on connectors and cables, ensuring reliable performance and extended service life.

2. Durable Construction:

   • Resistant to abrasion, oils, chemicals, and harsh environmental conditions, maintaining integrity in challenging industrial settings.

   • Suitable for both indoor and outdoor installations where exposure to environmental elements is a concern.

3. Enhanced Signal Integrity:

   • Shielded options available to protect against electromagnetic interference (EMI), maintaining signal integrity and minimizing disruptions.

   • Ideal for applications requiring reliable data transmission and precise control in automated systems.

4. Customization Options:

   • Available in various conductor sizes (AWG), shielding configurations, and jacket materials to meet specific application requirements.

   • Custom colors and lengths for easy identification and seamless integration into complex systems.

5. Compliance and Certifications:

   • Meets international standards (UL, CSA, CE) for electrical safety and performance, ensuring adherence to industry regulations.

   • Suitable for applications requiring compliance with specific safety and environmental standards.

Benefits

• Reliability: Ensures uninterrupted operation and minimal downtime in critical industrial processes.

• Durability: Robust construction withstands mechanical stress and environmental factors, extending cable life.

• Performance: Optimized for high-speed data transmission and signal integrity in demanding industrial applications.

• Customization: Tailored solutions available to meet specific project requirements, enhancing system integration and efficiency.

Customer Support

• Technical Expertise: Consultative support for cable selection, application suitability, and customization options.

• Design Assistance: Collaborative approach to address unique project challenges and specifications.

• Order Fulfillment: Efficient processing and delivery to meet project timelines and logistical needs.

FAQ

Q1: Are you a cable and wire manufacturer?
A1:Yes, We are a professional wire and cable manufacturer with more than 9 years experience. And we have CCC, UL, CE, SAA certifications etc.

Q2: Can you offer a discount on cables?
A2:Sure, the price is negotiable. It can be changed according to your quantity or package. When you are sending an inquiry, please let us know the quantity you want.

Q3: Can you offer free samples?
A3:Of course, the sample is Free if in stock, but the freight is collect or you pay us the cost in advance.

Q4: What about your MOQ?
A4:Usually, our MOQ is 500 Meters. Also, It depends on what types of cables you need.

Q5: Do you accept customize cables?
A5:Yes, you can send your own design or sample, we can open new mold and product any cables for you.
